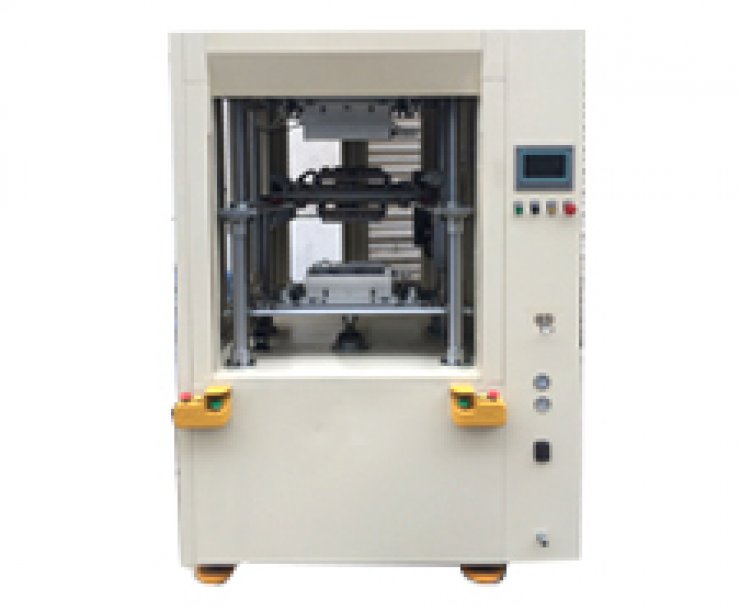

Servo Hot Plate Welding Equipment

The main function:

1. According to the requirements of the welding points of various automobile door panels, the driving mode is servo motor drive.

2. PLC programmable microcomputer control system. HMI window to adjust welding parameters.

3. The transmission parts of the equipment are all driven by servo drives;

4. All connections of gas and electric parts are automatically connected;

5. Quickly change the mold, the mold change time does not exceed 10 minutes;

6. Using servo plus displacement ruler system, the running accuracy of the equipment can be controlled within 0.01mm.

Specifications:

Dimensions: L2200mm*w1400mm*H2600mm

Equipment weight: 3.5T

Maximum welding area: 550mm*450mm

Scope of application: Welding of car lights, car oil cans, air intake fittings, glove boxes, etc.

illustrate:

Precise linear guides are used to move the equipment up and down, and gears and racks are added to ensure the smoothness of the up and down movement.
