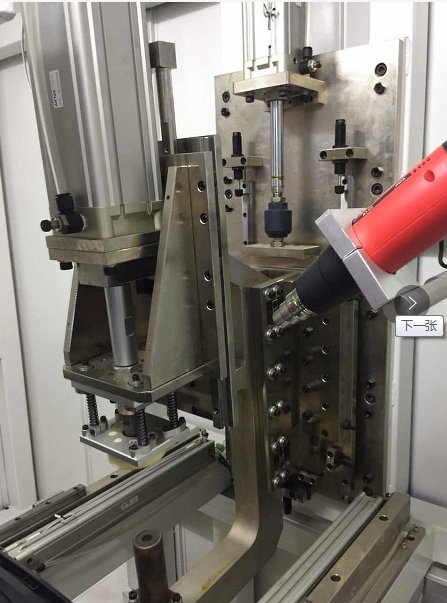

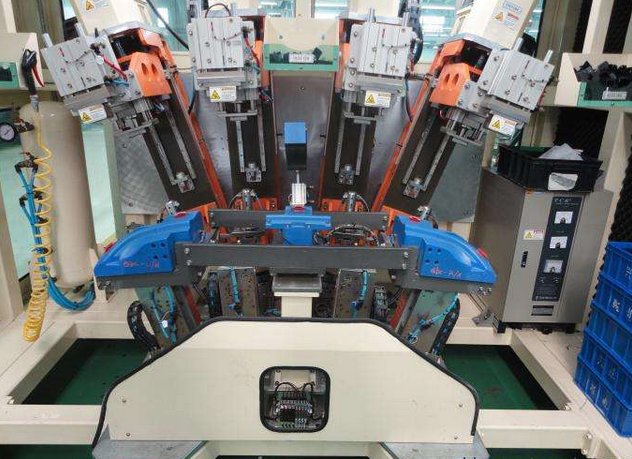

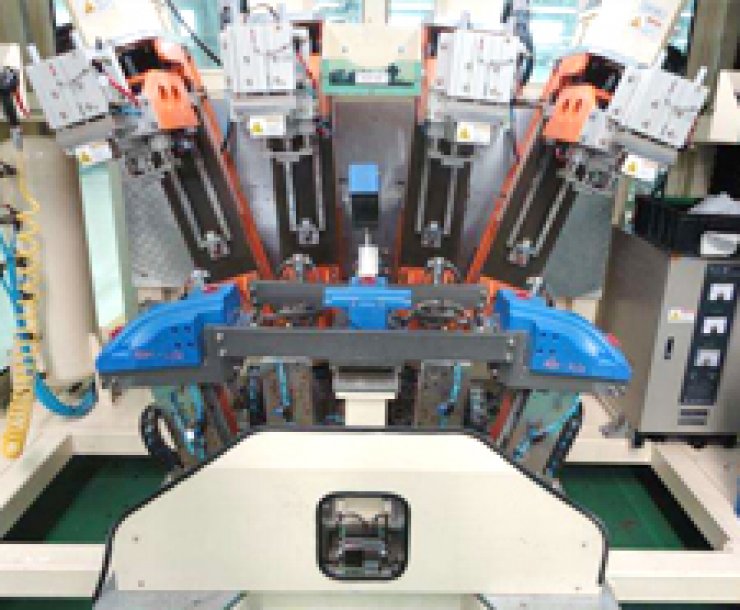

Radar Hole Punching and Radar Bracket Ultrasonic Welding Integrated Equipment

The main function:

1. For the punching of the radar hole of the automobile bumper,

2. Punching methods include direct punching and ultrasonic punching.

3. The punching drive mode is servo motor or booster cylinder.

4. The equipment moves up and down with precision linear guides, and precision screw rods are used as the punching transmission medium.

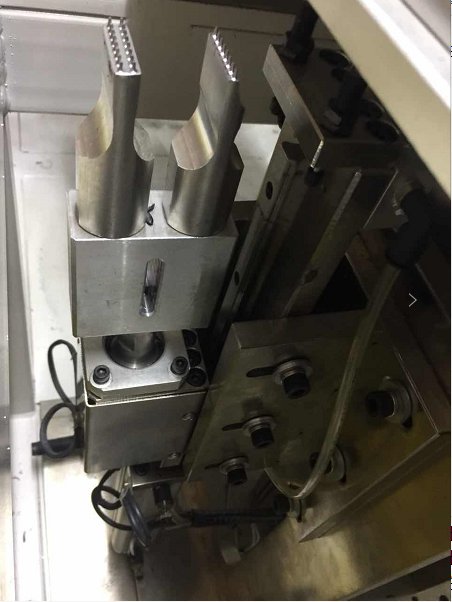

5. The upper and lower knives of punching are fixed in one piece, which fully guarantees the concentricity of the upper and lower knives, so as to ensure that the punched holes will not have burrs.

6. Can be used for punching holes in front and rear bumpers, grilles, etc.

Specifications:

Size: L4000mm*W1500mm*H2500mm

Power supply: 380V 12A/10P

Weight: 1500KG

Drive mode: pneumatic + servo
