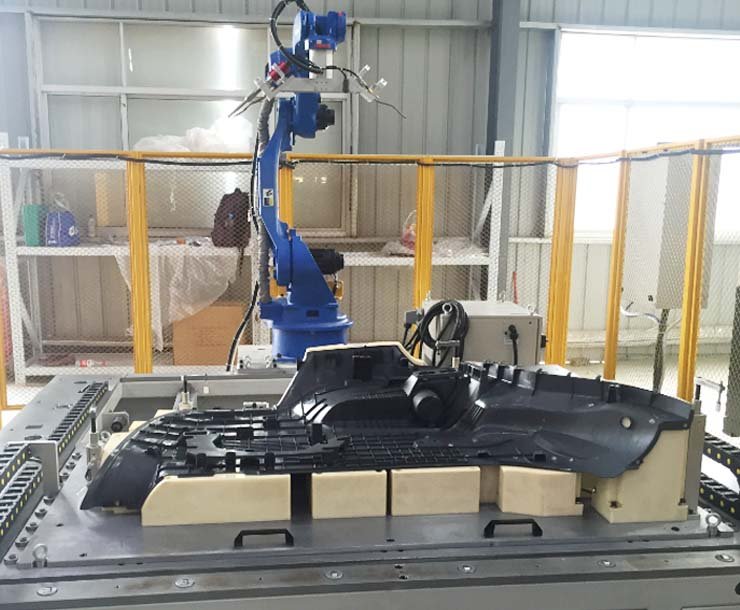

Robotic Ultrasonic Piercing Welding Equipment

The main function:

1. The robot is connected to the steel plate fixing seat, and the outer fence must have a protective net.

2. The Yaskawa six-axis robot sets the specified trajectory and repeats the movement.

3. Product incoming material identification, robot action, automatic position welding.

4. Scope of application: welding of automobile door panels, etc.

Specifications:

Robot arm length: 1750mm.

Robot load: 15KG

Robot working diameter: 2100mm.

Size: L3200mm*W3000mm*2800mm

Weight: 500Kg

Power supply: single-phase 220V, 380V 12A/10P

Drive mode: robot
