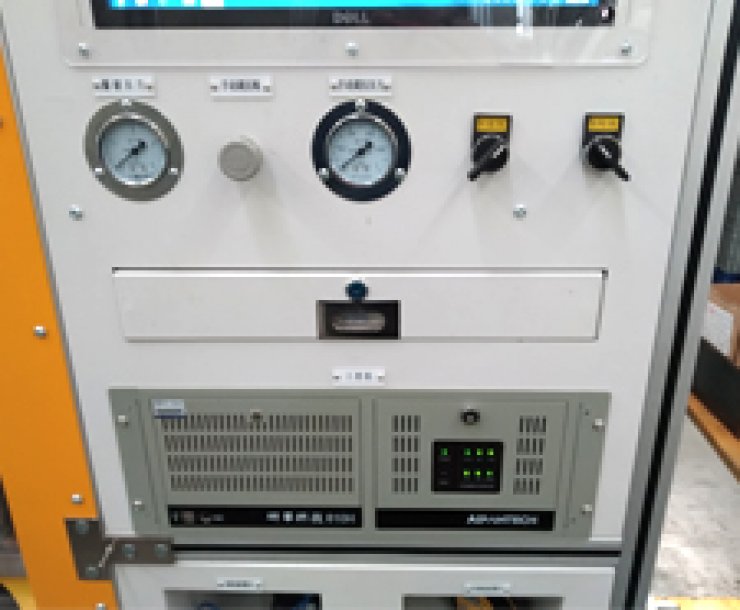

Blasting Test Equipment

The main function:

1. Sheet metal welded frame structure.

2.304 stainless steel water tank;

3. Gas-liquid booster pump;

4. Water pressure boost pressure 0-35Bar; air pressure booster 0-2Bar;

5. PLC programmable microcomputer control system,

6. Data recording system;

7. Two-dimensional code reading system;

8. Imported Japanese SMC pressure sensor with stable performance and high precision;

9. The overall size of the product used is 500*500*400mm;

10. Suitable for blasting test of intake manifold and cylinder head cover;

Specifications:

Size: L1500mm*W800mm*H2200mm

Power supply: single-phase 220V, 380V 12A/10P

Weight: 500Kg,

Drive mode: pneumatic
